PVC shrink film is a type of packaging material that is used to wrap products for protection and branding purposes. It is made by extruding PVC resin and additives through a blown film process. The film is then heat shrunk onto the product using a heat gun or a heat tunnel. This process creates a tight and secure seal that protects the product from external elements like dust, moisture, and tampering.
|
Physical and Mechanical Properties |
||||
|
Item Name |
Standard |
Typical |
Testing |
|
|
Tensile Strength Mpa |
MD |
≥35 |
64 |
ASTM D638 |
|
TD |
≥25 |
32 |
||
|
Elongation at break % |
MD |
≥280 |
650 |
|
|
TD |
≥380 |
750 |
||
|
Haze % |
Thickness≤30μm |
≤5.0 |
≤2.3 |
ASTM D1003 |
|
30μm<Thickness<80μm |
≤8.0 |
≤4.5 |
||
|
Heat Sealing Temperature ℃ |
Heat Sealing Type |
<145 |
122(≥8N) |
/ |
|
Non-heat Sealing Type |
≥145 |
/ |
/ |
|
|
Surface Tension dyn/cm |
Treatment Surface |
≥380 |
≥38 |
ISO 8296 |
|
Non-treatment Surface |
<33 |
/ |
||
|
Dynamic Friction Coefficient |
/ |
/ |
0.65-0.75 |
ASTM D1984 |

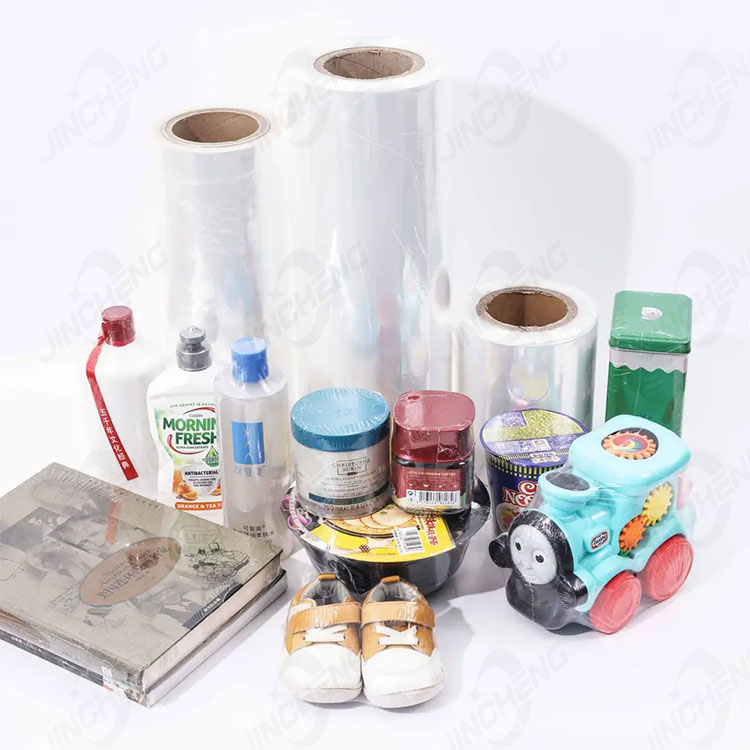

PVC shrink film is used in many industries for various applications:
1. Food and Beverage Industry: PVC shrink film is commonly used to wrap products like bottles, cans, and jars. It keeps the product fresh and free from contamination.
2. Pharmaceutical Industry: PVC shrink film is used to wrap medicine bottles and blister packs.It helps to protect the product from light and moisture, which can affect the chemical composition of the medicine.
3. Cosmetics Industry: PVC shrink film is used to wrap cosmetic and personal care products. It protects the product from air and moisture, which can cause spoilage.
1. Cost-effective: PVC shrink film is an affordable packaging material that is widely available in the market.

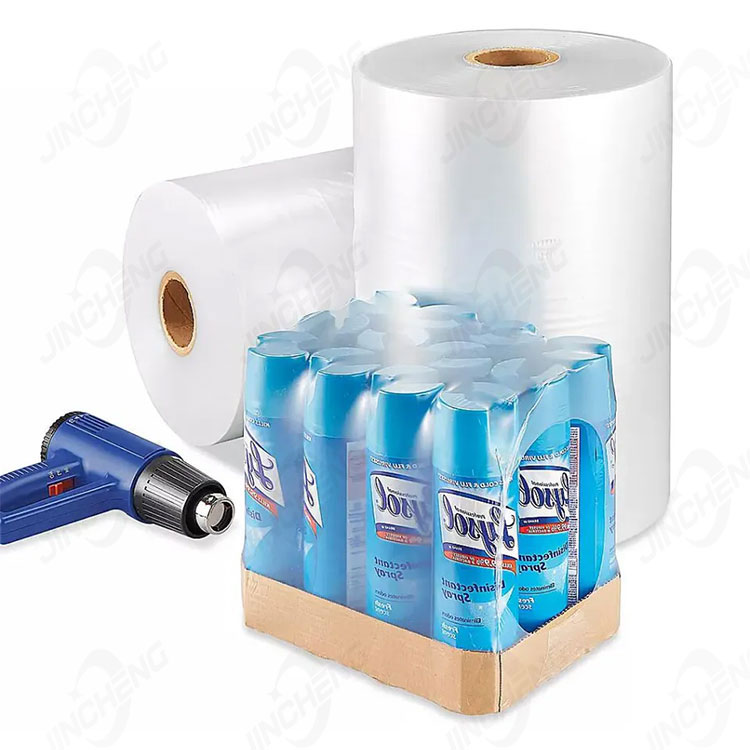

2. Easy to Use: PVC shrink film can be easily applied to products using a heat gun or a heat tunnel.
3. Customizable: PVC shrink film can be customized with branding and labeling designs to make products stand out on the shelves.
