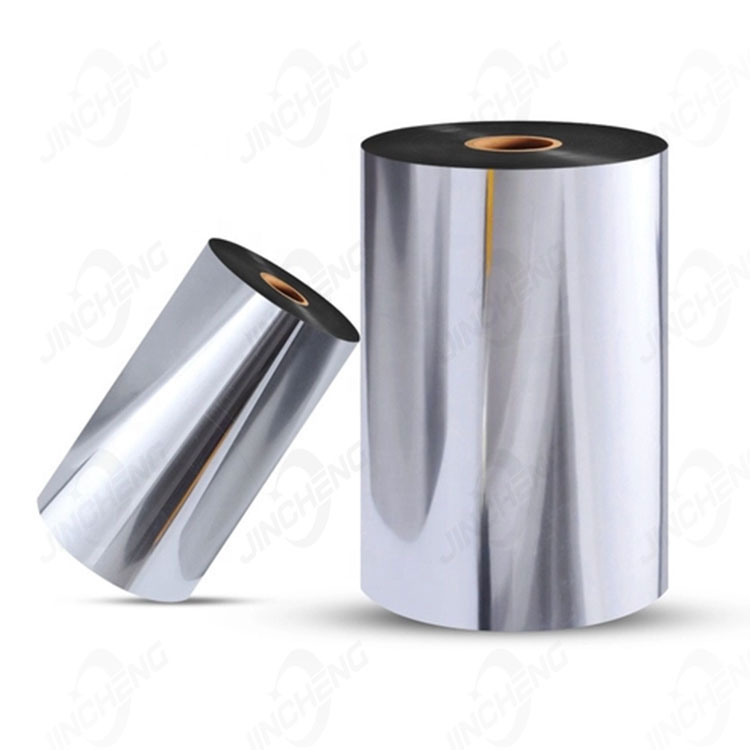

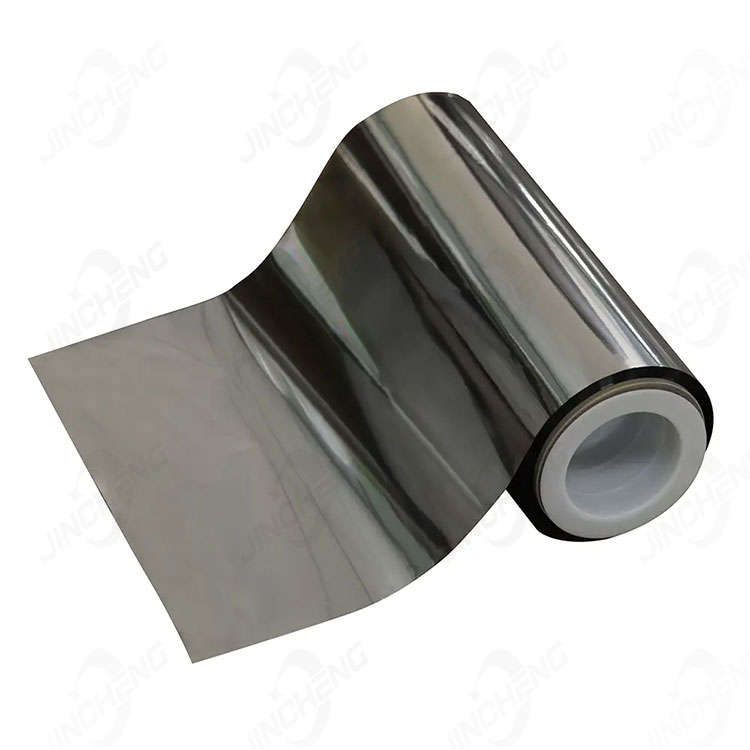

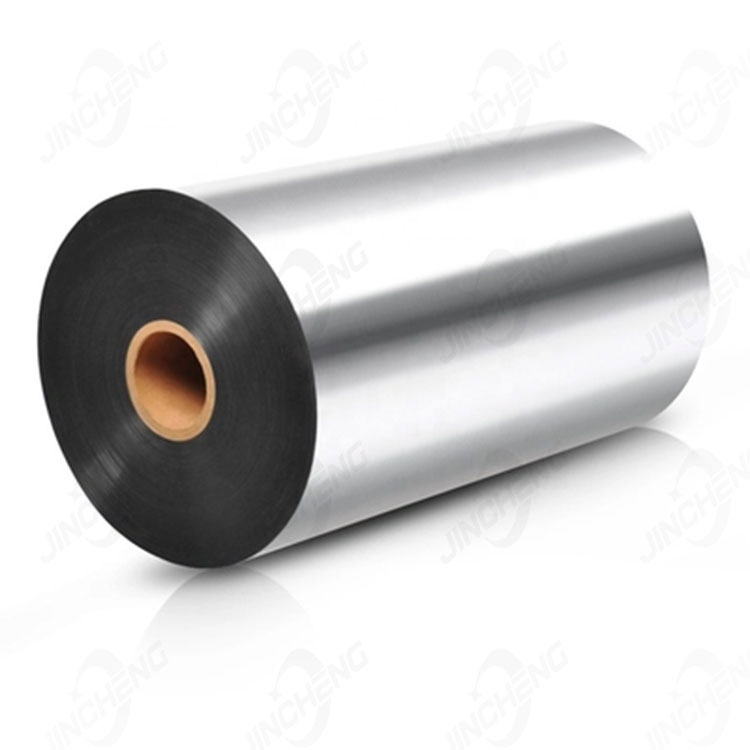

Silver OPP Aluminized Thermal Film is a type of packaging film made from biaxially-oriented polypropylene (BOPP) and coated with aluminum on one side.The aluminum coating helps to reflect heat, making it ideal for thermal insulation and temperature control.The "Sliver" in its name refers to the metallic, shiny appearance of the aluminum coating.
|
Physical and Mechanical Properties |
||||
|
Item Name |
Standard |
Typical |
Testing |
|
|
Tensile Strength Mpa |
MD |
≥35 |
64 |
ASTM D638 |
|
TD |
≥25 |
32 |
||
|
Elongation at break % |
MD |
≥280 |
650 |
|
|
TD |
≥380 |
750 |
||
|
Haze % |
Thickness≤30μm |
≤5.0 |
≤2.3 |
ASTM D1003 |
|
30μm<Thickness<80μm |
≤8.0 |
≤4.5 |
||
|
Heat Sealing Temperature ℃ |
Heat Sealing Type |
<145 |
122(≥8N) |
/ |
|
Non-heat Sealing Type |
≥145 |
/ |
/ |
|
|
Surface Tension dyn/cm |
Treatment Surface |
≥380 |
≥38 |
ISO 8296 |
|
Non-treatment Surface |
<33 |
/ |
||
|
Dynamic Friction Coefficient |
/ |
/ |
0.65-0.75 |
ASTM D1984 |
BOPP Metalized Film, the thickness of products ranges from 1.2 to 25 wires, depending on the thickness, the number of meters per roll is also different.Each roll is made of 46 mm inner diameter paper tube wrapped with bubble film.
Can the width of each roll be arranged according to the customer's requirements, and the large demand can be made with 3 wooden pallets (under normal circumstances, one pallet for every 9 pieces)
Features of Silver OPP Aluminized Thermal Film:
- Reflects heat and keeps products at a stable temperature
- Shiny, attractive appearance
- Tear-resistant and durable
- Lightweight and easy to work with
- Can be printed on
