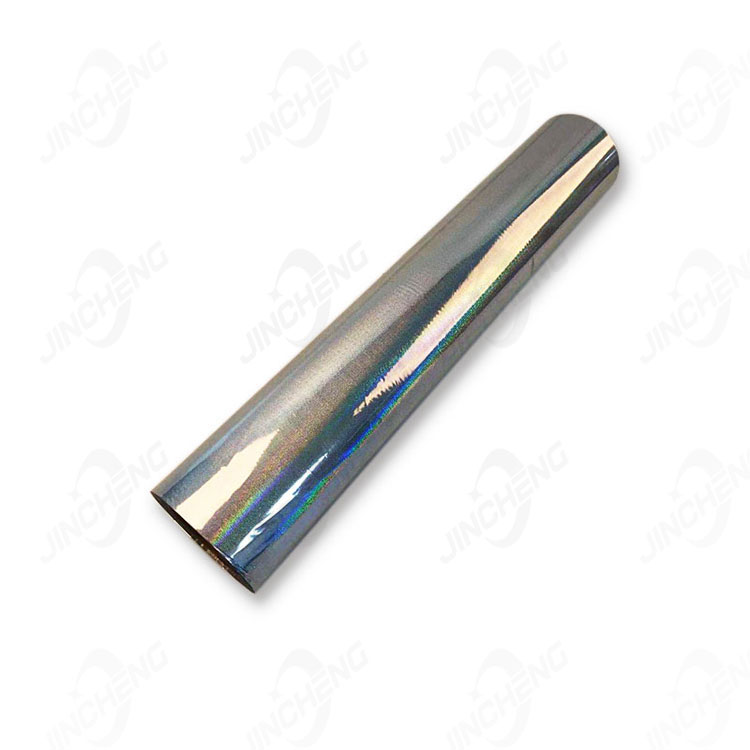

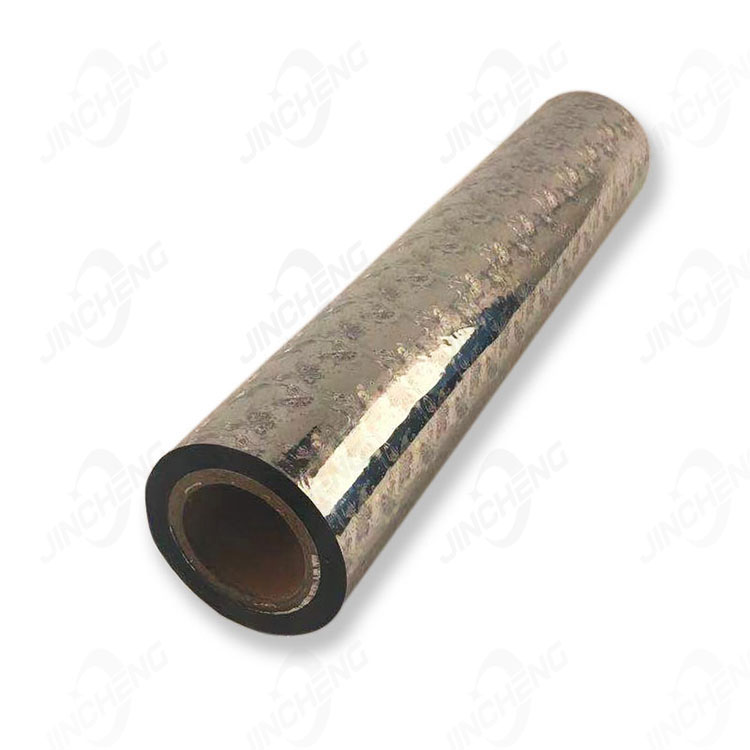

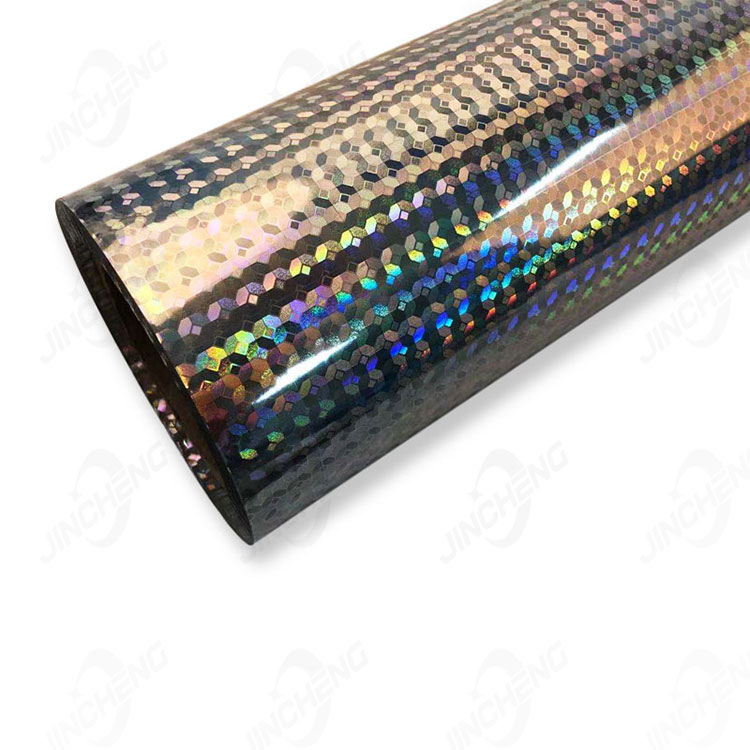

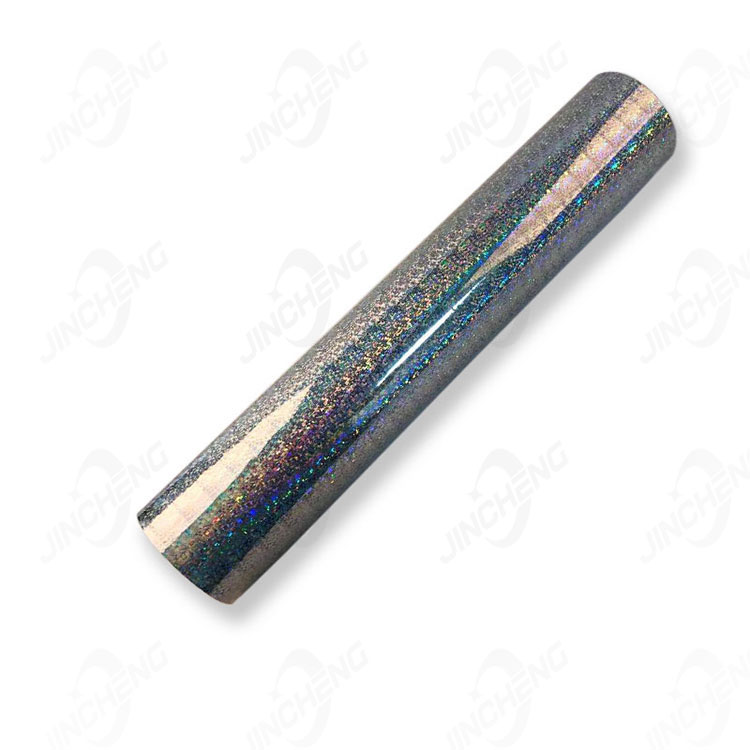

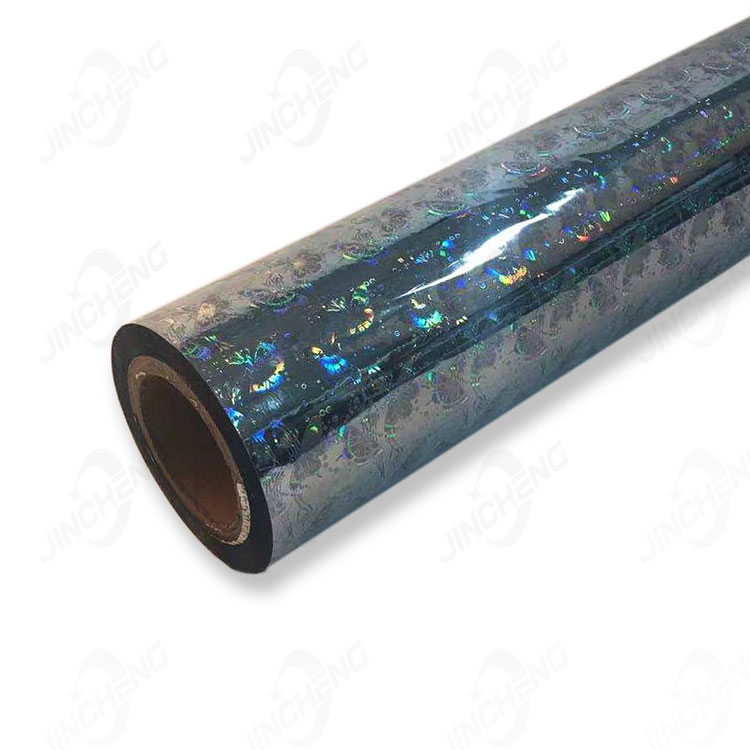

UV Embossed BOPET Holographic Films

UV Embossed BOPET Holographic Films is a form of polyester film that is created through a biaxial stretching process.The stretching process allows the film to have high tensile strength, excellent dimensional stability, and mechanical properties

UV Embossed BOPET Holographic Films is a form of polyester film that is created through a biaxial stretching process.The stretching process allows the film to have high tensile strength, excellent dimensional stability, and mechanical properties.Additionally, BOPET films have excellent transparency, gloss, and printability, which makes them suitable for a range of applications.



UV Embossed BOPET Holographic FilmsUV Embossed BOPET Holographic Films


Product Parameter (Specification)



Physical and Mechanical Properties

Item Name

Standard
Value

Typical
Index

Testing
Standard

Tensile Strength Mpa

MD

≥35

64

ASTM D638

TD

≥25

32

Elongation at break %

MD

≥280

650

TD

≥380

750

Haze %

Thickness≤30μm

≤5.0

≤2.3

ASTM D1003

30μm<Thickness<80μm

≤8.0

≤4.5

Heat Sealing Temperature ℃

Heat Sealing Type

<145

122(≥8N)

/

Non-heat Sealing Type

≥145

/

/

Surface Tension dyn/cm

Treatment Surface

≥380

≥38

ISO 8296

Non-treatment Surface

<33

/

Dynamic Friction Coefficient

/

/

0.65-0.75

ASTM D1984



Product Feature And Application



UV Embossed BOPET Holographic Film is made by embossing a hologram pattern on the BOPET film surface. The hologram pattern is created using laser technology, which reflects light in a unique way, causing an optical illusion. When light reflects off the hologram pattern, it generates an iridescent, three-dimensional effect that adds an exceptional visual appeal to the product packaging. Moreover, embossing the hologram pattern on the surface makes it tough for counterfeiters to replicate the product. This means that these films can help to protect your brand against counterfeiters in the market.



UV Embossed BOPET Holographic FilmsUV Embossed BOPET Holographic Films


Product Details



UV Embossed BOPET Holographic Films have excellent UV resistant properties. The films can reflect and absorb UV radiation, which protects the product contents from harmful impacts. Also, BOPET films have a high barrier property against water vapor, which helps to maintain the product's freshness and flavor for longer periods.

UV Embossed BOPET Holographic Films come in different grades ranging from narrow web holographic films to wide web holographic films. These films can be used in a variety of applications such as flexible packaging, gift packaging, lamination, security applications, and label applications, just to mention a few. UV Embossed BOPET Holographic Films are not only visually appealing, but also provide practical benefits to the product. They act as a barrier against moisture and UV radiation while improving the overall performance and functionality of the product packaging.





Hot Tags: UV Embossed BOPET Holographic Films, China, Manufacturer, Supplier, Factory
