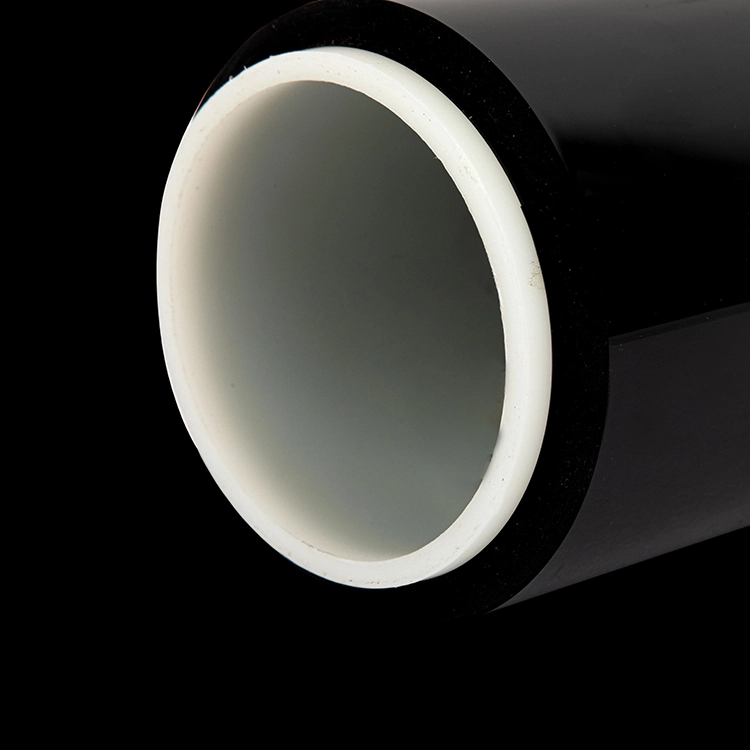

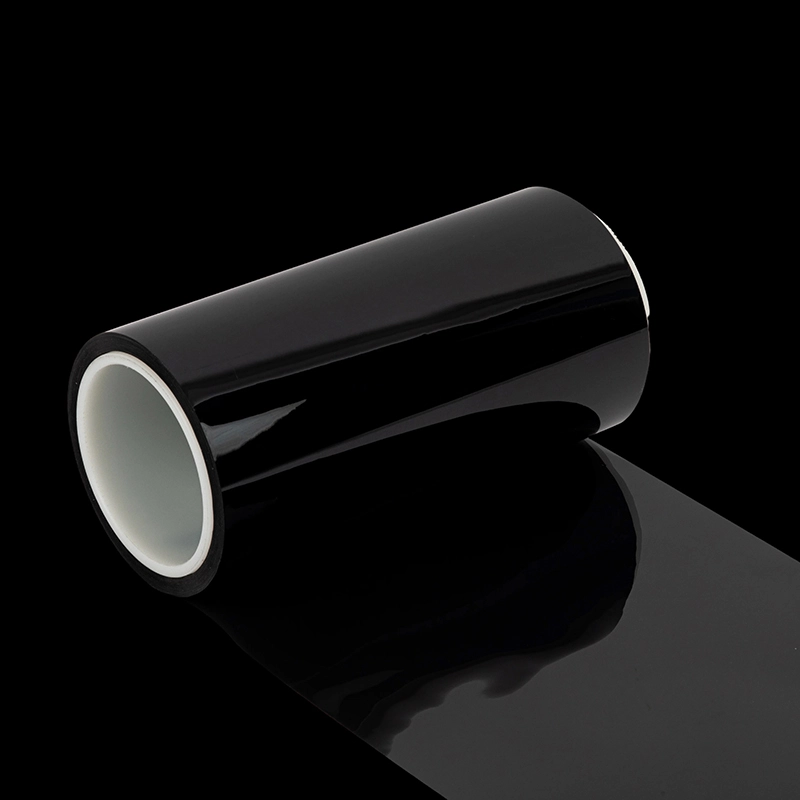

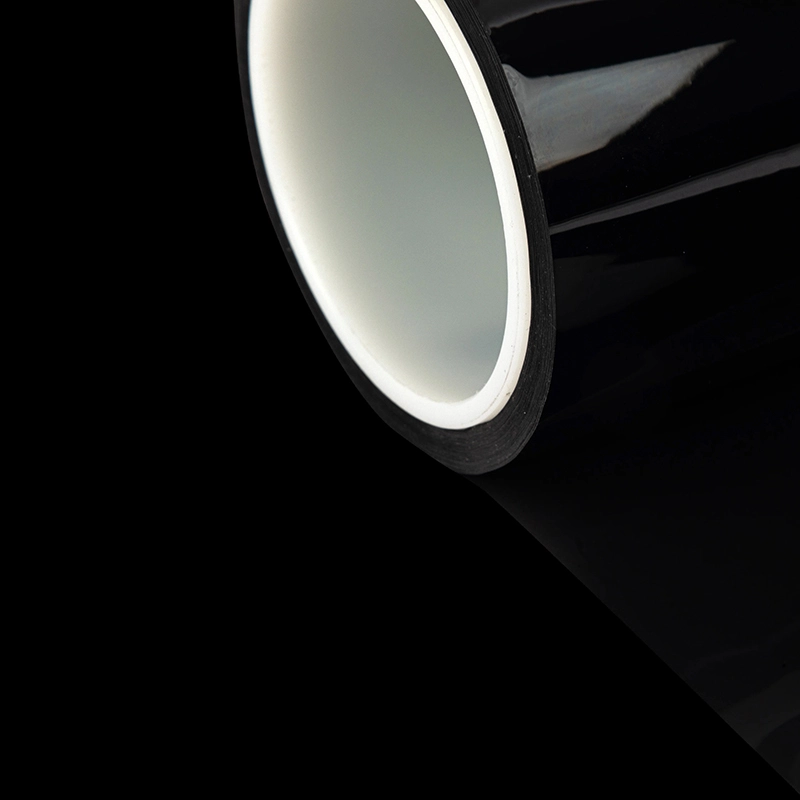

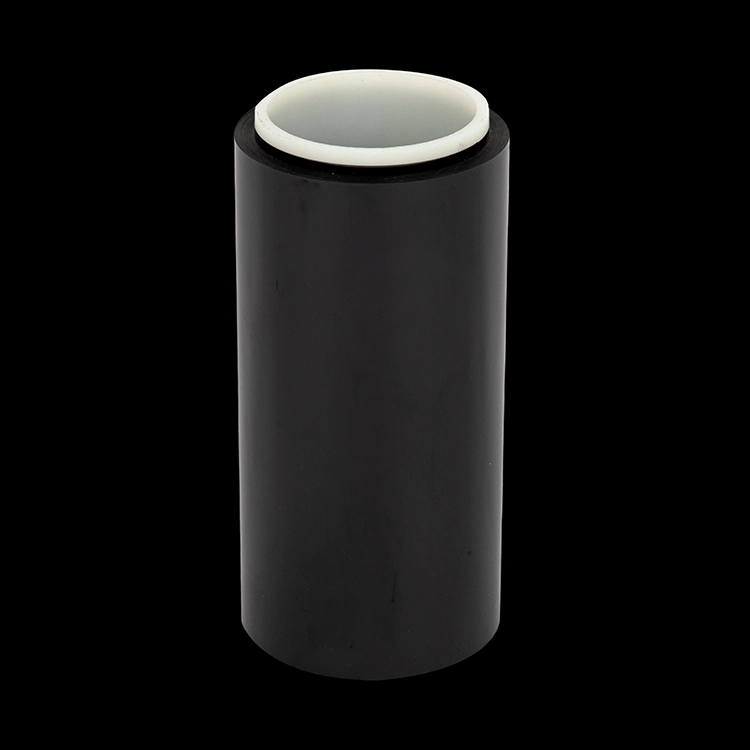

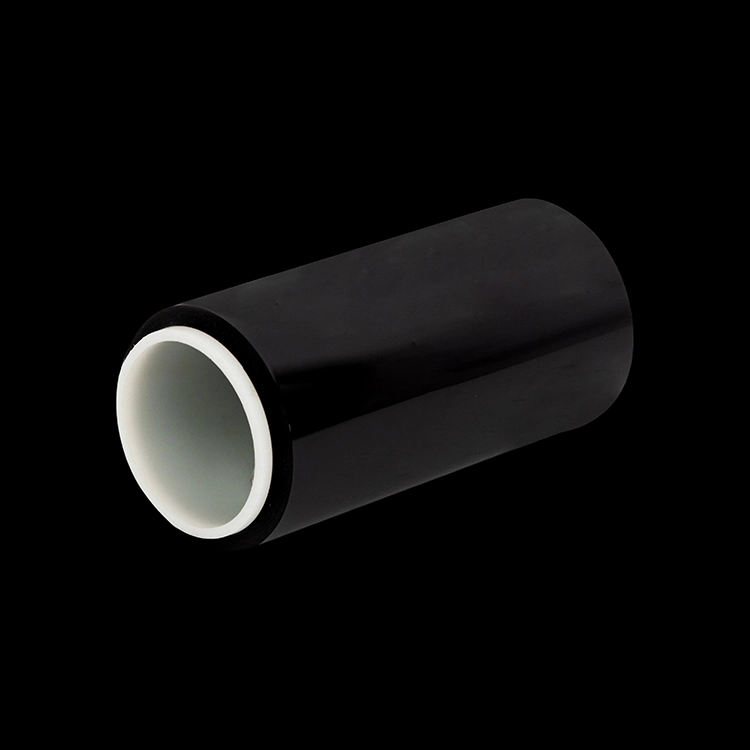

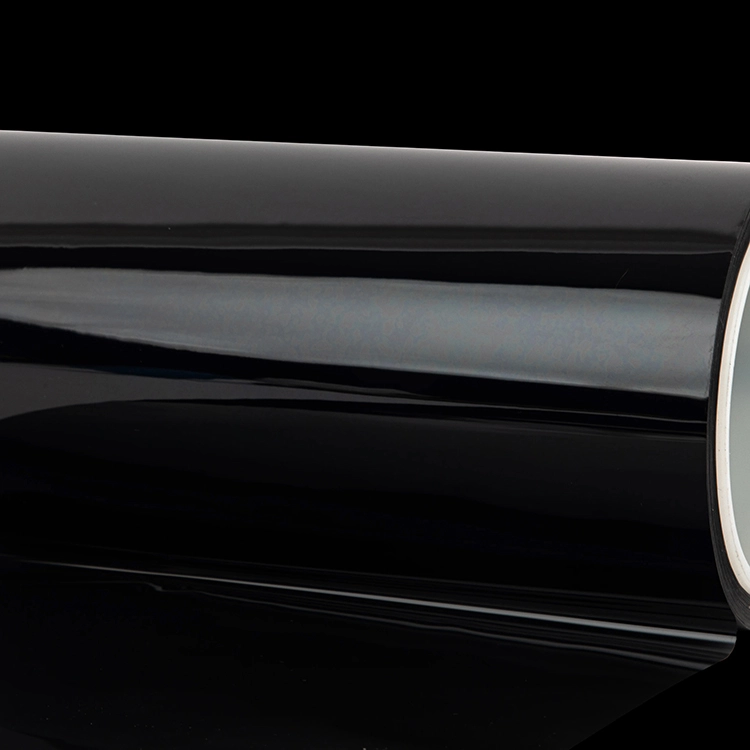

BOPET Black Film For Automotive Interior Shading

Jincheng supplies you with high-quality China BOPET Black Film for Automotive Interior Shading. It is available in two versions: H01 Bright Black and H05 Matte Black, suitable for various vehicle interior assembly requirements. The film comes in a full range of thicknesses from 25μm to 100μm.

Compared to ordinary civilian films, this product has been specially optimized and upgraded for special working conditions such as high-temperature exposure of automobiles, temperature fluctuations, vibration and friction, and confined and narrow spaces. It features extremely high structural strength, excellent bending resistance and non-deformation performance, as well as high-voltage insulation protection capabilities. The tensile strength is ≥ 150 MPa. It can withstand the complex environment of vehicles for a long time without cracking, deforming or fading.

Combined with the dual-sided differential corona treatment process, it ensures the compatibility of the subsequent die-cutting and bonding, as well as the coating of the adhesive on the backside. It also meets the requirements for the surface wear resistance and stain resistance of the interior layer. It is a standardized high-end supporting material for automotive interior shading sealing, circuit insulation, and component protection. It is widely applicable to interior modifications and original factory projects of passenger cars, commercial vehicles, and new energy vehicles. The factory has passed the authoritative ISO three-system certification, with full-process intelligent quality control, and its performance is stable and in line with the standards for automotive industrial supporting products.

Product Usage Notes

1. Construction Environment and Temperature Control

The BOPET Black Film For Automotive Interior Shading should be constructed in a constant-temperature dust-free room. The suitable ambient temperature is 18-29℃, and the ambient humidity should be ≤60%. Construction should not be carried out in outdoor scenarios with high temperatures, low humidity, dust and moisture. Excessive temperature difference can cause fluctuations in the membrane material's expansion coefficient, leading to problems such as air bubbles during adhesion, edge curling, and poor adhesion. Ensuring a perfect adhesion between the membrane material and the interior base material, and enhancing the stability and lifespan of the finished product.

2. Base Material Pre-treatment and Cleaning Requirements

Before construction, thoroughly clean the dashboard, interior shell, and the area where the circuit pads are attached. Use a dedicated alcohol cleaner to remove surface dust, oil stains, wax, and static residue. If the base material surface has scratches, unevenness, or flaws, they must be pre-polished and repaired to avoid magnifying the base material defects and affecting the interior aesthetics and sealing shading effect.

3. Safety Area Avoidance Specifications

During the installation process, strictly avoid the areas where the car's airbags will pop out, the driving view display area, and the core area of the central control sensor buttons. Do not cover or block the vehicle's safety structure and intelligent sensing components with the film, as this may affect the vehicle's safety performance and intelligent control functions. This fully complies with the safety specifications for interior car decoration.

4. Forming Adhesion and Curing Maintenance

The film adhesion is carried out using a uniform exhaust method from the center to the periphery to eliminate residual bubbles, wrinkles, and misalignment. For complex curved pad positions, low-temperature hot air can be used to assist in shaping. It is suitable for interior irregular structures. After construction, it needs to be left to cure for 48 hours. During this period, avoid frequent touching the edges, vigorous friction, and water washing cleaning to ensure the complete curing and adhesion of the adhesive layer.

5. Daily Vehicle Maintenance Specifications

For the daily cleaning of BOPET Black Film For Automotive Interior Shading, only neutral soft cleaning agents and dust-free soft cloths can be used. Strictly prohibit the use of strong acid and strong alkali cleaning agents and hard-bristled brushes for cleaning. This is to prevent damage to the surface structure and matte/reflective black texture of the film material. Avoid long-term local exposure to accumulated heat. Regularly check the edge adhesion status of the film material and promptly handle minor edge curling problems to extend the lifespan.

6. Working Condition Adaptation and Usage Prohibitions

This product is specifically designed for automotive interior shading, insulation, and sealing protection. It cannot be used for direct heat insulation in the vehicle's high-temperature engine compartment or external paint surface modification. For the use of high-voltage circuits in electric vehicles, it is necessary to strictly match the corresponding thickness specification. Do not use it under overloading conditions in high-voltage situations.

Real user purchase reviews

Review 1 | New energy vehicle interior accessory manufacturer

We have been purchasing Jincheng's BOPET Black Film For Automotive Interior Shading for dashboard shading and circuit insulation pads for a long time. The original black material has a very uniform texture and no fading or whitening. 100% full shading completely solves the problem of interior light leakage. The film has high tensile strength and is resistant to bending, suitable for automated die-cutting production. Batch processing has almost no scrap, and it will not deform or age under long-term high-temperature vehicle use. The insulation performance is stable, fully meeting the industrial supporting standards for new energy vehicle interior accessories.

Review 2 | Automotive interior modification engineering provider

The two models, bright black and matte black, are suitable for all interior modification scenarios. The matte black model does not reflect light and has a high-end matte texture, suitable for center consoles and interior panel decorations; the bright black model has strong tightness and is suitable for sealing and shading accessories. The film material has stable tension, and the construction is not prone to stretching or deformation. After application, there are no bubbles or edge lifting, and it is resistant to temperature changes in the vehicle, with customers reporting a significant improvement in interior shading effect and overall texture.
