BOPET Antistatic Film

BOPET Antistatic Film is a type of packaging material that is used to prevent electrostatic discharge (ESD). ESD can occur when there is a buildup of static electricity on the surface of the packaging material, which can damage electronic components.

BOPET Antistatic Film is a type of packaging material that is used to prevent electrostatic discharge (ESD).  ESD can occur when there is a buildup of static electricity on the surface of the packaging material, which can damage electronic components.  BOPET Antistatic Film is designed to reduce the static charge on the surface of the packaging material, making it an ideal material for packaging electronic components.


BOPET Antistatic FilmBOPET Antistatic Film

Product Parameter (Specification)


Physical and Mechanical Properties

Item Name

Standard
Value

Typical
Index

Testing
Standard

Tensile Strength Mpa

MD

≥35

64

ASTM D638

TD

≥25

32

Elongation at break %

MD

≥280

650

TD

≥380

750

Haze %

Thickness≤30μm

≤5.0

≤2.3

ASTM D1003

30μm<Thickness<80μm

≤8.0

≤4.5

Heat Sealing Temperature ℃

Heat Sealing Type

<145

122(≥8N)

/

Non-heat Sealing Type

≥145

/

/

Surface Tension dyn/cm

Treatment Surface

≥380

≥38

ISO 8296

Non-treatment Surface

<33

/

Dynamic Friction Coefficient

/

/

0.65-0.75

ASTM D1984

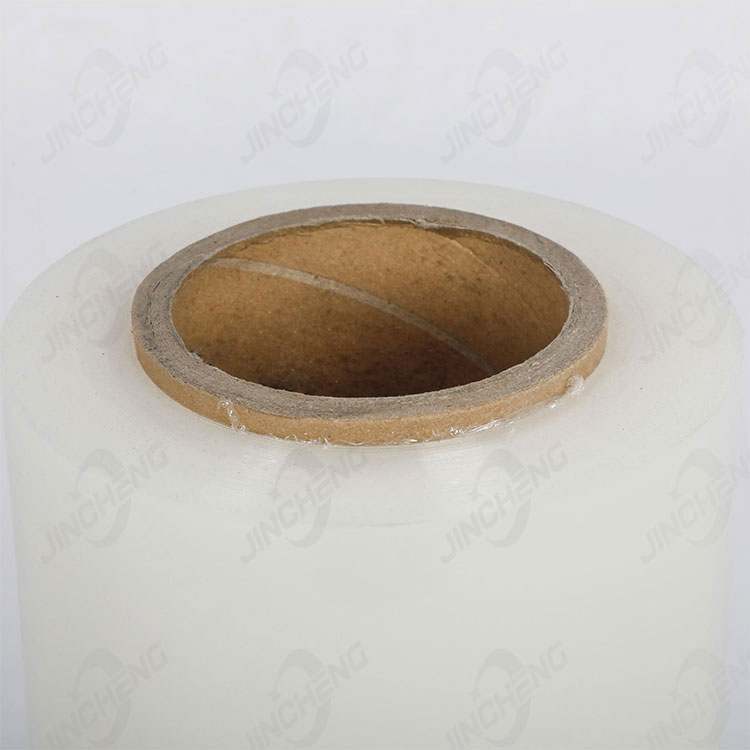

BOPET polyester film, the thickness of products ranges from 1.2 to 25 wires, depending on the thickness, the number of meters per roll is also different.  Each roll is made of 46 mm inner diameter paper tube wrapped with bubble film.


Can the width of each roll be arranged according to the customer's requirements, and the large demand can be made with 3 wooden pallets (under normal circumstances, one pallet for every 9 pieces)


BOPET Antistatic FilmBOPET Antistatic Film

Product Feature And Application


BOPET Antistatic Film When the humidity is 60%RH, the resistance is large, it has good light transmittance, matte surface 5-7%, good flatness, insulation and other properties, which are mainly used in electronic and electrical industries.


BOPET Antistatic Film

Product Details


BOPET Antistatic Film provides a wide range of benefits.  When used in packaging, it prevents the buildup of static electricity on the surface of the packaging material, which can cause damage to the product inside.  This material is also highly transparent, which makes it ideal for packaging products that need to be seen.  Additionally, BOPET Antistatic Film provides excellent surface protection, which ensures that the product inside remains safe and secure during transportation.
