BOPET Reflective Film

BOPET reflective film is a specialized material that has reflective properties and can be embedded with different patterns, colors, and shapes. It is made by using a special process that includes coating and laminating layers of polyester and aluminum to create a reflective layer.

BOPET reflective film is a specialized material that has reflective properties and can be embedded with different patterns, colors, and shapes.  It is made by using a special process that includes coating and laminating layers of polyester and aluminum to create a reflective layer.  The resulting film is thin, flexible, and durable, and can be used in a wide range of applications, including traffic safety, outdoor advertising, construction safety, sports and recreation, aerospace and marine industry, and many others.


BOPET Reflective FilmBOPET Reflective Film


Product Parameter (Specification)


Physical and Mechanical Properties

Item Name

Standard
Value

Typical
Index

Testing
Standard

Tensile Strength Mpa

MD

≥35

64

ASTM D638

TD

≥25

32

Elongation at break %

MD

≥280

650

TD

≥380

750

Haze %

Thickness≤30μm

≤5.0

≤2.3

ASTM D1003

30μm<Thickness<80μm

≤8.0

≤4.5

Heat Sealing Temperature ℃

Heat Sealing Type

<145

122(≥8N)

/

Non-heat Sealing Type

≥145

/

/

Surface Tension dyn/cm

Treatment Surface

≥380

≥38

ISO 8296

Non-treatment Surface

<33

/

Dynamic Friction Coefficient

/

/

0.65-0.75

ASTM D1984

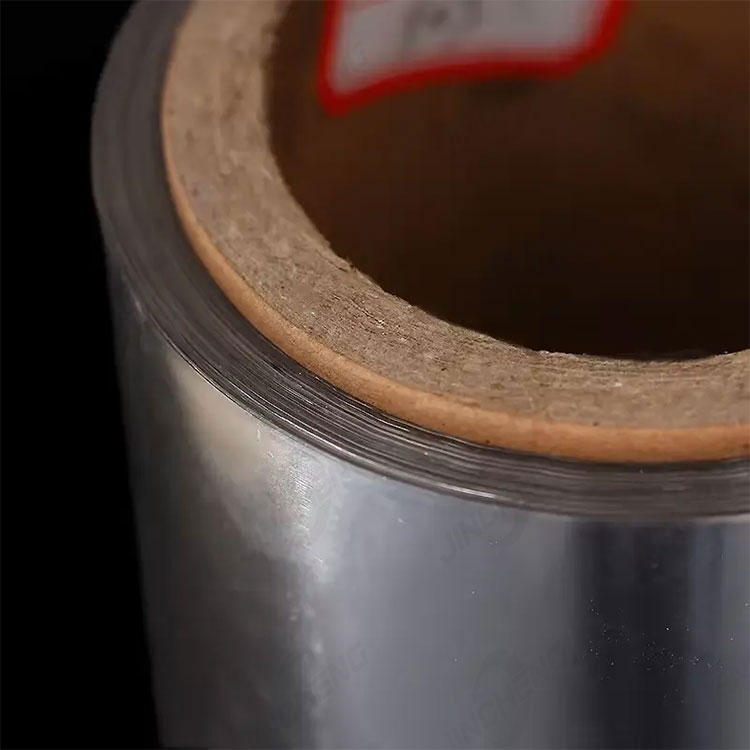

BOPET polyester film, the thickness of products ranges from 1.2 to 25 wires, depending on the thickness, the number of meters per roll is also different.  Each roll is made of 46 mm inner diameter paper tube wrapped with bubble film.


Can the width of each roll be arranged according to the customer's requirements, and the large demand can be made with 3 wooden pallets (under normal circumstances, one pallet for every 9 pieces)


BOPET Reflective FilmBOPET Reflective Film


Product Feature And Application


BOPET Reflective Film has high gloss, good thermal stability, high tensile strength and good surface flatness, and is widely used in highways, car bodies and other identification and reflective cloth, reflective leather, advertising spraying and other industries.


BOPET Reflective Film


Product Details


BOPET reflective film works based on the principle of retroreflection, which means that it reflects light back to its source and provides greater visibility.   Compared to other reflective materials, which usually scatter light in different directions, BOPET reflective film provides a uniform and bright reflection that can be seen from a long distance and under various weather conditions.   Moreover, BOPET reflective film can be customized to fit the specific needs of different applications, such as different colors, patterns, and shapes, which makes it a versatile solution for safety and security purposes.
