BOPET Diffusion Film

One of the significant advantages of BOPET Diffusion Film is its unique optical properties that increase light transmission. It allows more light to pass through the material, making it ideal for display applications that require high brightness and clarity.

One of the significant advantages of BOPET Diffusion Film is its unique optical properties that increase light transmission.  It allows more light to pass through the material, making it ideal for display applications that require high brightness and clarity.


BOPET Diffusion Film


Product Parameter (Specification)


Physical and Mechanical Properties

Item Name

Standard
Value

Typical
Index

Testing
Standard

Tensile Strength Mpa

MD

≥35

64

ASTM D638

TD

≥25

32

Elongation at break %

MD

≥280

650

TD

≥380

750

Haze %

Thickness≤30μm

≤5.0

≤2.3

ASTM D1003

30μm<Thickness<80μm

≤8.0

≤4.5

Heat Sealing Temperature ℃

Heat Sealing Type

<145

122(≥8N)

/

Non-heat Sealing Type

≥145

/

/

Surface Tension dyn/cm

Treatment Surface

≥380

≥38

ISO 8296

Non-treatment Surface

<33

/

Dynamic Friction Coefficient

/

/

0.65-0.75

ASTM D1984

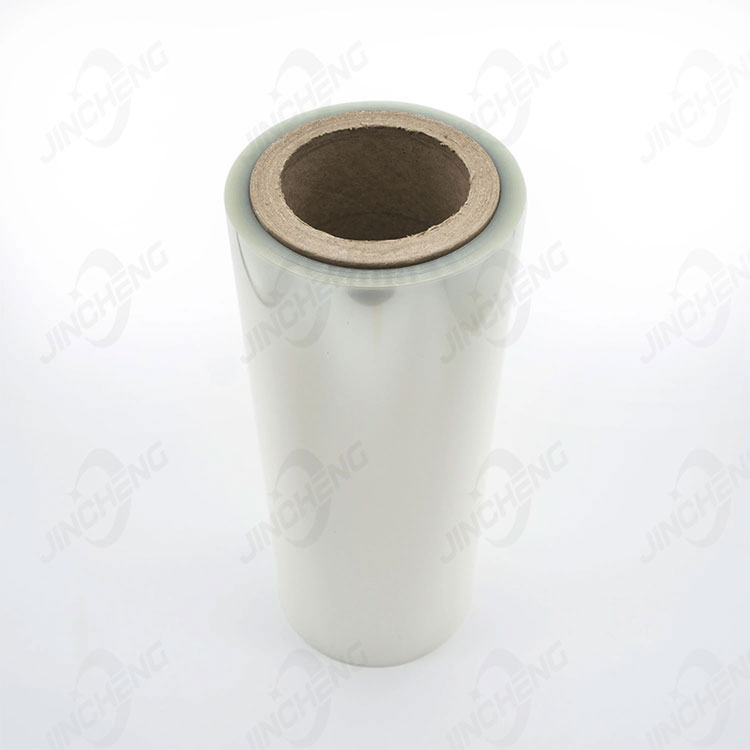

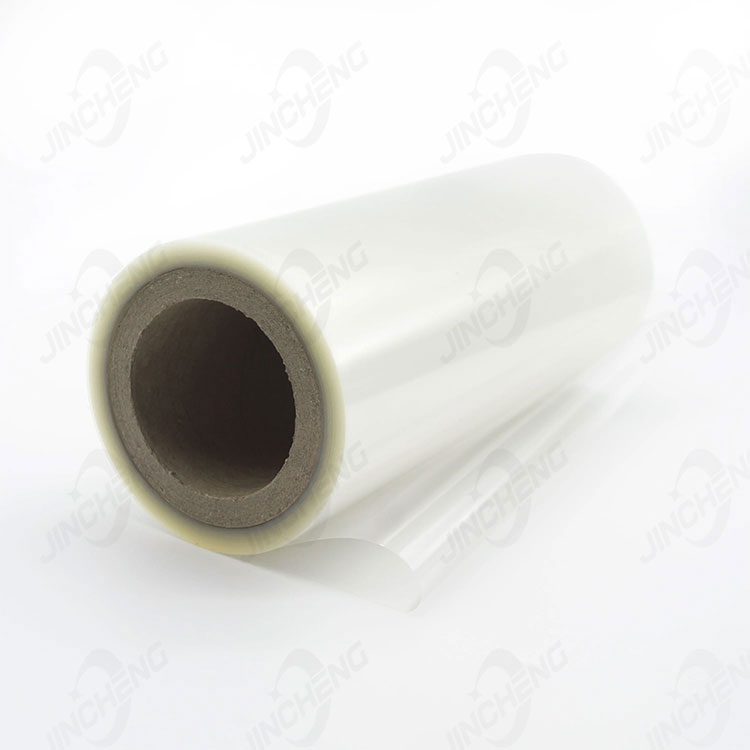

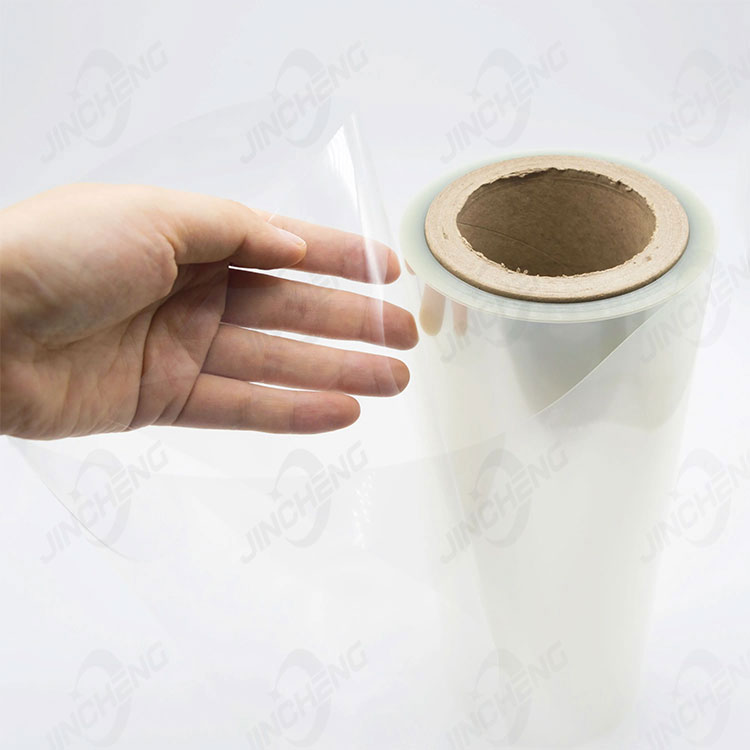

BOPET polyester film, the thickness of products ranges from 1.2 to 25 wires, depending on the thickness, the number of meters per roll is also different.  Each roll is made of 46 mm inner diameter paper tube wrapped with bubble film.


Can the width of each roll be arranged according to the customer's requirements, and the large demand can be made with 3 wooden pallets (under normal circumstances, one pallet for every 9 pieces)


BOPET Diffusion Film

Product Feature And Application


BOPET Diffusion Film for light diffusion turns a point light source into a surface light source and is used in display screens. lightbox advertising and other industries.


BOPET Diffusion Film


Product Details


BOPET Diffusion Film has a broad range of applications in various industries, including:

1.  Displays and Signage: BOPET Diffusion Film is widely used in displays and signage to improve the visual experience of the audience.  It is used in large LCD and LED displays, retail and point-of-sale displays, and backlit signs.

2.  Lighting: BOPET Diffusion Film is also used in the lighting industry to enhance the brightness and clarity of LED and fluorescent lighting fixtures.  It produces uniform lighting without hotspots and reduces glare and flicker, making it ideal for commercial, industrial, and residential lighting applications.

3.  Automotive: BOPET Diffusion Film is used in the automotive industry to enhance the performance and reliability of lights and displays.  Its optical properties improve the clarity and visibility of dashboard displays, headlamps, taillights, and other lighting components.
