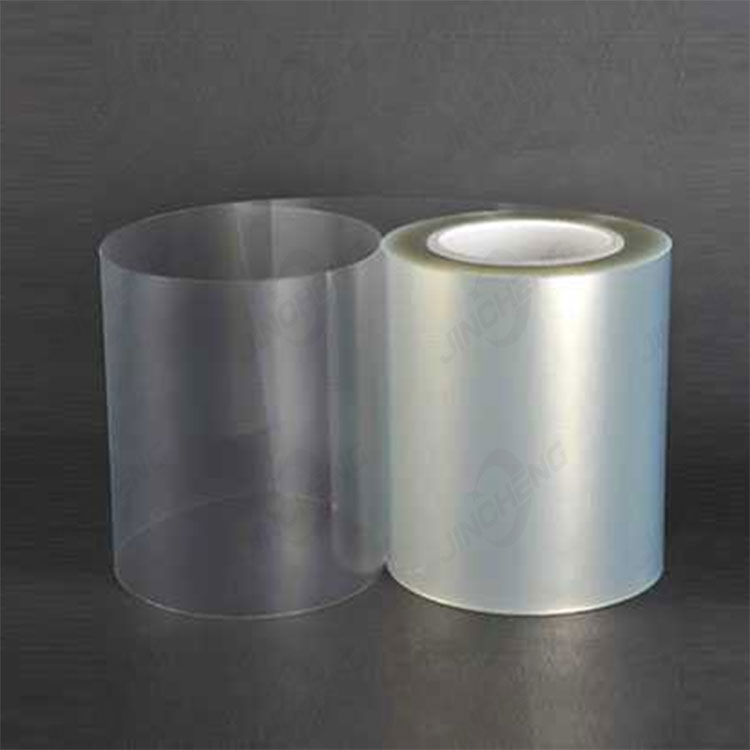

BOPET Optical Film

BOPET optical film is a type of polyester film that is coated with multiple layers of nano-thin coatings. These coatings are designed to alter the physical properties of the film, resulting in remarkable optical performance.

BOPET optical film is a type of polyester film that is coated with multiple layers of nano-thin coatings.  These coatings are designed to alter the physical properties of the film, resulting in remarkable optical performance.  BOPET optical film is widely used in a range of applications, including displays, touch screens, LED lighting, and solar energy.  The film's optical properties, such as brightness, color uniformity, and contrast, make it an ideal choice for high-performance displays.


BOPET Optical Film

Product Parameter (Specification)


Physical and Mechanical Properties

Item Name

Standard
Value

Typical
Index

Testing
Standard

Tensile Strength Mpa

MD

≥35

64

ASTM D638

TD

≥25

32

Elongation at break %

MD

≥280

650

TD

≥380

750

Haze %

Thickness≤30μm

≤5.0

≤2.3

ASTM D1003

30μm<Thickness<80μm

≤8.0

≤4.5

Heat Sealing Temperature ℃

Heat Sealing Type

<145

122(≥8N)

/

Non-heat Sealing Type

≥145

/

/

Surface Tension dyn/cm

Treatment Surface

≥380

≥38

ISO 8296

Non-treatment Surface

<33

/

Dynamic Friction Coefficient

/

/

0.65-0.75

ASTM D1984


BOPET polyester film, the thickness of products ranges from 1.2 to 25 wires, depending on the thickness, the number of meters per roll is also different.  Each roll is made of 46 mm inner diameter paper tube wrapped with bubble film.


Can the width of each roll be arranged according to the customer's requirements, and the large demand can be made with 3 wooden pallets (under normal circumstances, one pallet for every 9 pieces)


BOPET Optical Film

Product Feature And Application


BOPET Optical Film has high light transmittance, low haze, high clarity and high cleanliness, and is mainly used in mobile phones, computers, televisions, solar energy and other electronic and electrical industries.


Product Details


BOPET optical film offers several properties and benefits making it a unique and superior material for high-performance displays.  One of the primary advantages of BOPET optical film is its high levels of light transmission, which allows for greater brightness and clarity of the display.  Additionally, the film offers excellent color uniformity, providing accurate and vivid colors across the entire screen.  Another significant advantage of the film is its anti-glare properties, which reduce reflections and minimize eye strain in bright environments.  The film is also highly durable, with excellent scratch and impact resistance, making it ideal for outdoor displays and touch screens.
