BOPET Red film is known for its striking color and glossy finish, making it an ideal choice for creating eye-catching packaging designs. The film can also be easily customized with printing and labeling, enabling brands to create unique and attractive packaging for their products.
Product Parameter (Specification)
Physical and Mechanical Properties
Item Name
Standard
Value
Typical
Index
Testing
Standard
Tensile Strength Mpa
MD
≥35
64
ASTM D638
TD
≥25
32
Elongation at break %
MD
≥280
650
TD
≥380
750
Haze %
Thickness≤30μm
≤5.0
≤2.3
ASTM D1003
30μm<Thickness<80μm
≤8.0
≤4.5
Heat Sealing Temperature ℃
Heat Sealing Type
<145
122(≥8N)
/
Non-heat Sealing Type
≥145
/
/
Surface Tension dyn/cm
Treatment Surface
≥380
≥38
ISO 8296
Non-treatment Surface
<33
/
Dynamic Friction Coefficient
/
/
0.65-0.75
ASTM D1984

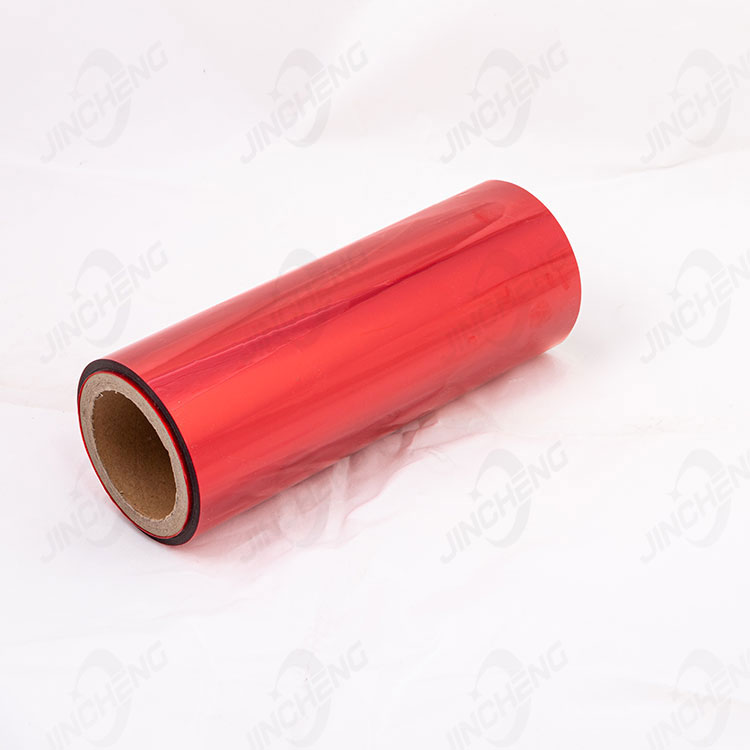

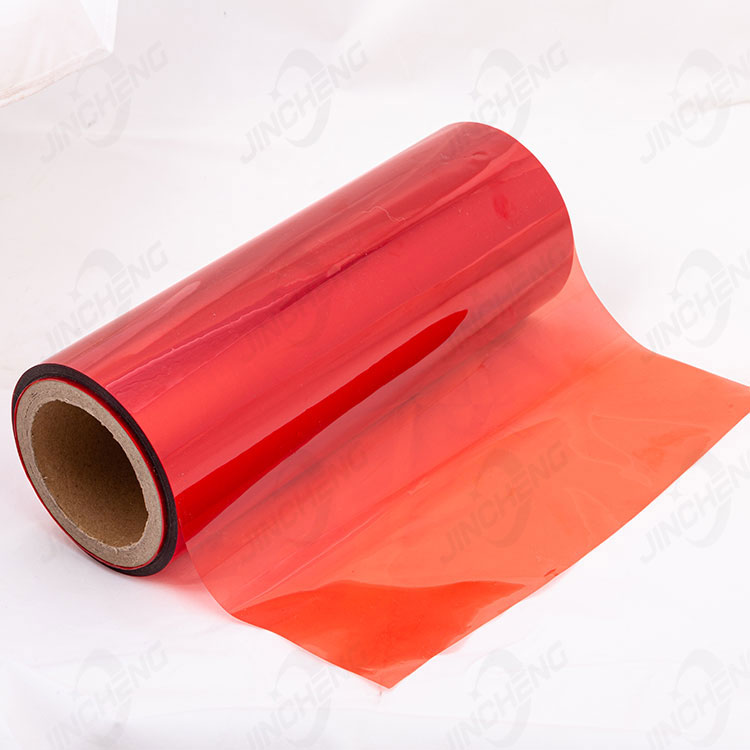

BOPET polyester film, the thickness of products ranges from 1.2 to 25 wires, depending on the thickness, the number of meters per roll is also different. Each roll is made of 46 mm inner diameter paper tube wrapped with bubble film.
Can the width of each roll be arranged according to the customer's requirements, and the large demand can be made with 3 wooden pallets (under normal circumstances, one pallet for every 9 pieces)
Product Feature And Application
BOPET Red Film has bright color, environmental protection, good flatness, low static electricity, high cleanliness and other properties, and is mainly used in the electronic and electrical industry, including coating, tape, decorative materials and other purposes.
Product Details
BOPET Red Film is a versatile and aesthetically pleasing packaging solution, ideal for creating eye-catching designs for products. Its excellent barrier properties and high tensile strength make it an effective means of protecting products, and its recyclability makes it a sustainable alternative to other packaging materials. If you're looking for a packaging material that is both functional and visually appealing, BOPET Red Film should definitely be a consideration.
