One of the primary advantages of BOPET screen printing film is its superior durability. The stretching process makes the film more resistant to tearing and punctures, which means that it can withstand the wear and tear of printing presses more effectively.
One of the primary advantages of BOPET screen printing film is its superior durability. The stretching process makes the film more resistant to tearing and punctures, which means that it can withstand the wear and tear of printing presses more effectively. Additionally, the film is less likely to shrink or stretch during the printing process, resulting in crisp, clean prints every time.
Product Parameter (Specification)
Physical and Mechanical Properties
Item Name
Standard
Value
Typical
Index
Testing
Standard
Tensile Strength Mpa
MD
≥35
64
ASTM D638
TD
≥25
32
Elongation at break %
MD
≥280
650
TD
≥380
750
Haze %
Thickness≤30μm
≤5.0
≤2.3
ASTM D1003
30μm<Thickness<80μm
≤8.0
≤4.5
Heat Sealing Temperature ℃
Heat Sealing Type
<145
122(≥8N)
/
Non-heat Sealing Type
≥145
/
/
Surface Tension dyn/cm
Treatment Surface
≥380
≥38
ISO 8296
Non-treatment Surface
<33
/
Dynamic Friction Coefficient
/
/
0.65-0.75
ASTM D1984

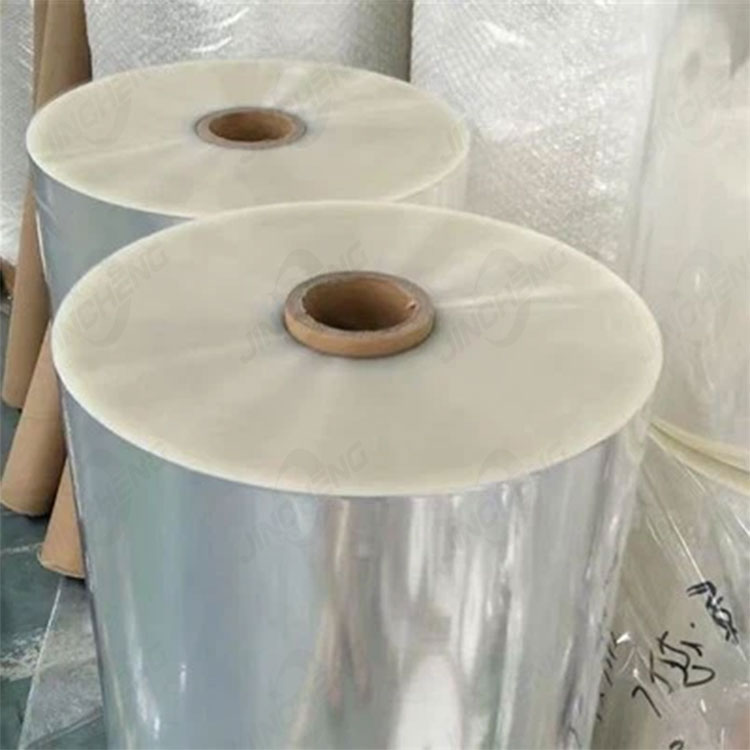

BOPET polyester film, the thickness of products ranges from 1.2 to 25 wires, depending on the thickness, the number of meters per roll is also different. Each roll is made of 46 mm inner diameter paper tube wrapped with bubble film.
Can the width of each roll be arranged according to the customer's requirements, and the large demand can be made with 3 wooden pallets (under normal circumstances, one pallet for every 9 pieces)
Product Feature And Application
BOPET Screen Printing Film is suitable for occasions that require a thick pattern to be formed on the surface of the material, such as the electronics industry and signage production.
Product Details
Another advantage of using BOPET screen printing film is that it produces high-quality prints. The film has a smooth, consistent surface that allows for precise ink placement and better ink adhesion. As a result, the prints produced on this film are more vibrant, with clearer details and sharper lines. This makes it an ideal choice for printing logos, text, and other intricate designs.
Hot Tags: BOPET Screen Printing Film, China, Manufacturer, Supplier, Factory
