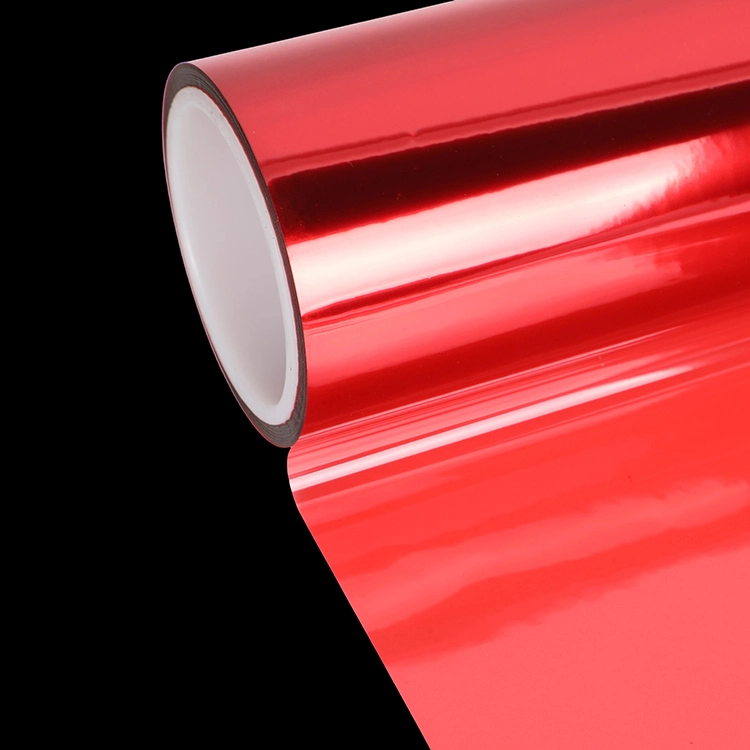

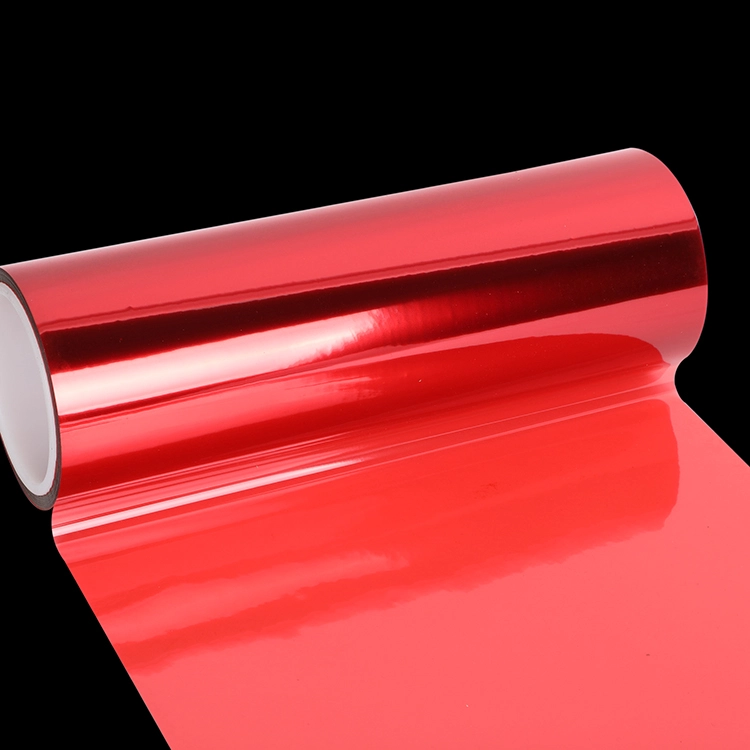

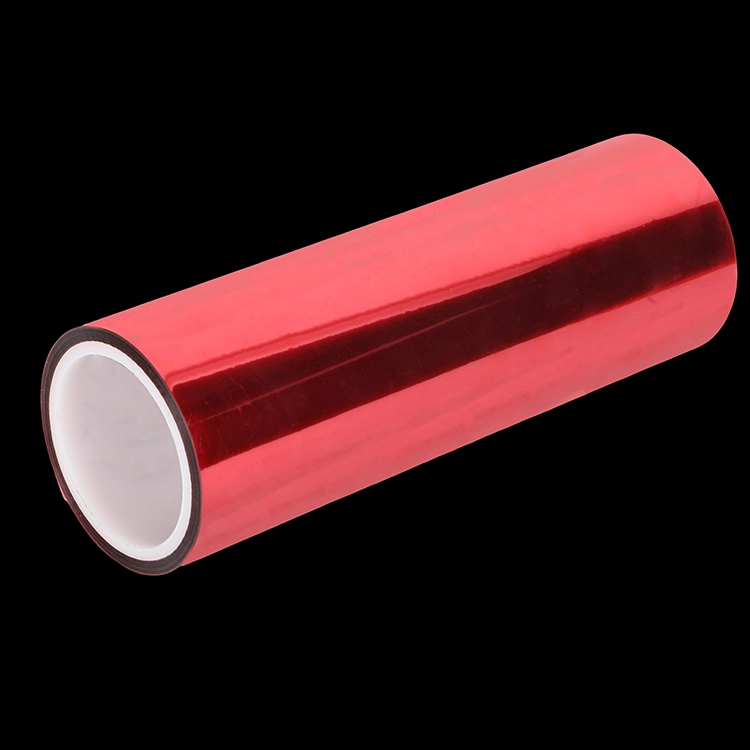

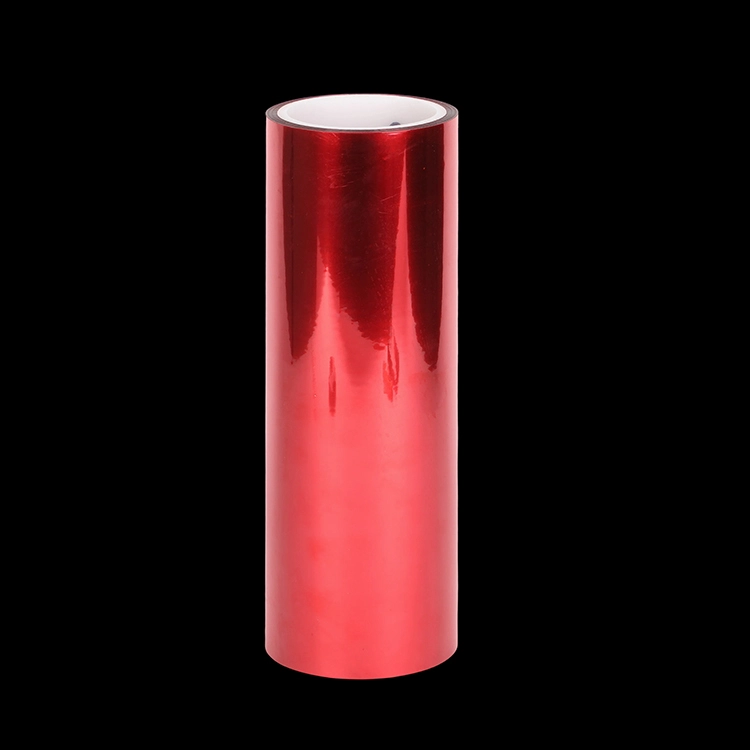

Surface Protection BOPET Red Film

The Surface Protection BOPET Red Film supplied by Jincheng Factory features two exclusive Chinese red color options, R11 and R21. It is produced through an original color masterbatch melt extrusion process without any subsequent spraying or film coloring. The film body has uniform and transparent colors, with an integrated appearance both inside and outside. It will not cause color fading, delamination, or color transfer due to friction, high temperature, or solvent contact. It is suitable for long-term industrial surface protection scenarios.

Core product functions

1. Protects the surface of the workpiece from scratches and bumps, maintaining the appearance quality and yield of the finished product.

2. Provides visual distinction in red color, preventing mix-ups in the workshop and operational errors.

3. Offers electrical insulation protection, avoiding risks of equipment leakage and short circuits.

4. Provides weather-resistant and dust-proof protection, suitable for various complex industrial conditions.

5. Can be further processed and molded, adaptable to customized protection solutions.

Usage Notes

1. Pre-treatment Requirements for Workpiece Base

Before applying the Surface Protection BOPET Red Film, thoroughly clean the surface of the workpiece of dust, oil, metal debris, and moisture to keep the base dry and clean. Any residue of impurities will cause inaccurate film adhesion, blistering, and edge peeling, affecting the overall protective effect and adhesion stability. It is strictly prohibited to cover the workpiece with film protection when it is dirty or wet.

2. Environmental Control for Construction

It is recommended to complete the film application operation in a dust-free, constant temperature and humidity workshop. The suitable construction temperature is 20-28℃, and the humidity is 40%-65%. High temperature and high humidity environments may cause condensation on the film surface and leakage of the adhesive layer. Low temperature environments will reduce the toughness of the film material, causing creases and cracks, and affecting the long-term protective performance.

3. Prohibited Operations for Adhesion and Storage

When applying the film, apply uniform and flat pressure to avoid forcefully stretching the film body, which may cause deformation and uneven tension. The finished protective workpiece should be neatly stacked and stored in a rolled state, and it is strictly prohibited to press, fold, or forcefully pull, to prevent permanent creases or damage to the film body, which would lose its protective capability.

4. Description of Applicable Working Conditions

This product is suitable for regular industrial normal temperature and medium-temperature protective scenarios, applicable for indoor workshops, storage transportation, and regular equipment operation protection. It is not suitable for long-term use in extreme conditions such as strong ultraviolet radiation or strong acid and alkali immersion. Special high-risk scenarios can be connected with customized modified protective versions in advance.

5. Maintenance and Cancellation Specifications for Later Period

When removing the protective film from the workpiece after completion, it should be removed evenly and steadily, and violent tearing is strictly prohibited. Avoid residual glue and damage to the surface layer of the workpiece. Only use a dust-free soft cloth to gently wipe the film surface, and strictly prohibit using hard tools for grinding or scraping to protect the wear-resistant protective layer of the film.

FAQ

Q1: After the Surface Protection BOPET Red Film is adhered to the workpiece and stored for a long time, will it fade and stain the workpiece?

A: No. It adopts a one-step coloring process using the original masterbatch, without surface coating, and the color is stable.

Q2: What are the differences between the two red models, R11 and R21, in terms of protective scenarios?

A: R11 has a soft light red texture and is suitable for regular protection of precision small parts and decorative workpieces; R21 has a deeper red color and is mainly used for high-risk electrical equipment and mechanical safety area warning protection. It can be selected and configured according to the specific scenario needs.

Q3: How is the friction resistance of this protective film? Is it suitable for long-distance transportation protection?

A: The BOPET base material has inherent high strength and wear resistance, and the film body is dense and tough. It can effectively resist the damage to the workpiece caused by long-distance transportation bumps and friction, and is fully compatible with the batch transportation protection of finished products.

Q4: Can it be treated for anti-static? Can it be used for the protection of electronic precision workpieces?

A: Customized anti-static coatings and enhanced corona treatment can be provided. It can be specifically adapted to the anti-static protection requirements of electronic components and precision lithium electronic components.

Q5: Is the insulation performance of the film stable? Can it be used for circuit isolation protection?

A: The base material has excellent insulation performance and uniform performance, and can be stably used for isolation protection of circuit boards, wiring harnesses, and lithium battery modules, effectively blocking static electricity and microcurrents, and avoiding electrical safety hazards.

Q6: Can large-scale procurement be adapted to customized cutting dimensions?

A: Standard thickness specifications are always in stock, and personalized cutting widths, fixed-length rewinding customization are supported. It is suitable for different protective equipment and workpiece sizes, reducing processing losses.

Q7: Can export orders provide dedicated protective packaging solutions?

A: Multiple packaging methods are supported, such as simple packaging, horizontal and vertical pallets, suspended pallets, and export moisture-proof and shock-proof special pallets. It is suitable for ocean shipping, moisture-proof and shock-proof, and comes with complete qualification reports to meet the acceptance standards of overseas customers.
